J104D Series
The J104D Series relay offers bifurcated contacts for high reliability with high sensitivity. Contacts rated at 2A. Conforming to FCC Part 68, this PC pin mounted relay offers 2C contact arrangement with coil voltage ranging from 3VDC up to 48VDC with coil power options of .15W, .20W, .36W or .45W. Dimensions are 20.4 x 10.5 x 11.0mm. UL Agency approval is E197851.
Features
Low Cost, Highly Sensitive, Conforms to FCC Part 68, Bifurcated Contacts for High Reliability, Less Than 1.9mm Creepage Coil to Contact, Less Than 1.2mm Clearance Coil to Contact
Specification
Contact Rating
2A@24VDC Resistive, 1A@120VAC Resistive
Contact Forms
2C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC, 48VDC
Coil Power
.15W, .20W, .36W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

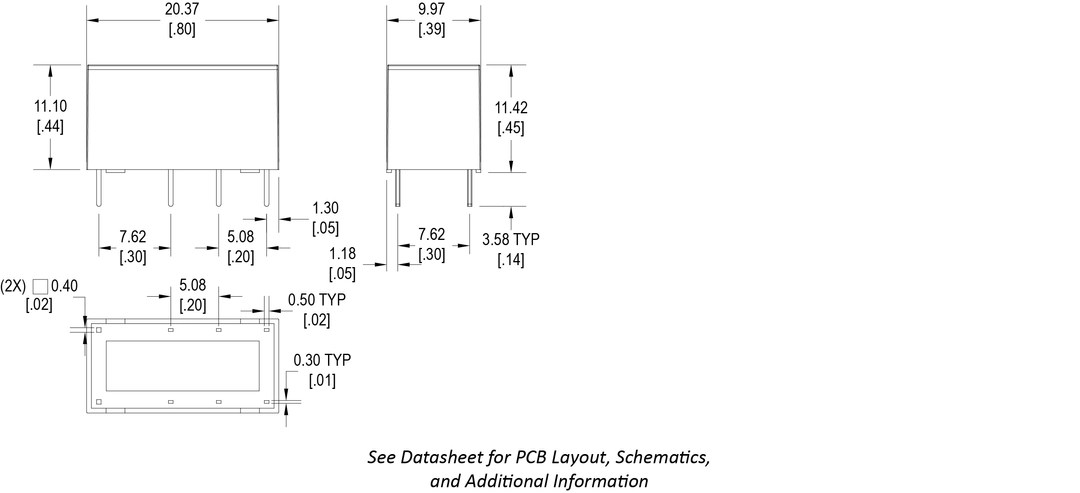

Dimensional Drawing
