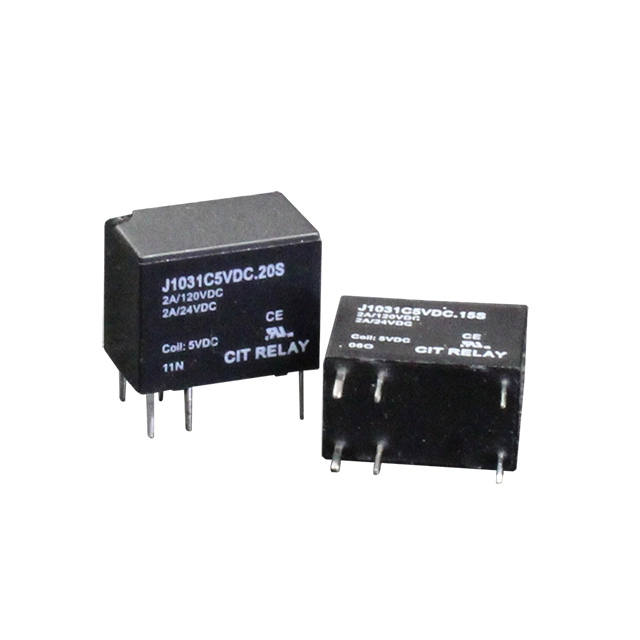

J103 Series
The J103 Series relay conforms to FCC Part 68. Highly sensitive, the J103 offers low coil power consumption in a small, light-weight package with PC pin mounting. Dimensions are 12.5 x 7.5 x 10.0mm. Contact arrangement is 1C with coil voltage choices ranging from 3VDC up to 24VDC and coil power options of .15W or .20W. UL Agency approval is E197851.
Features
Low Coil Power Consumption, Highly Sensitive, Conforms to FCC Part 68, PC Board Mounting, Small Size, Light Weight
Specification
Contact Rating
0.5A@125VAC, 1A@30VDC, 2A@120VAC Resistive, 2A@24VDC Resistive
Contact Forms
1C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC
Coil Power
.15W, .20W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

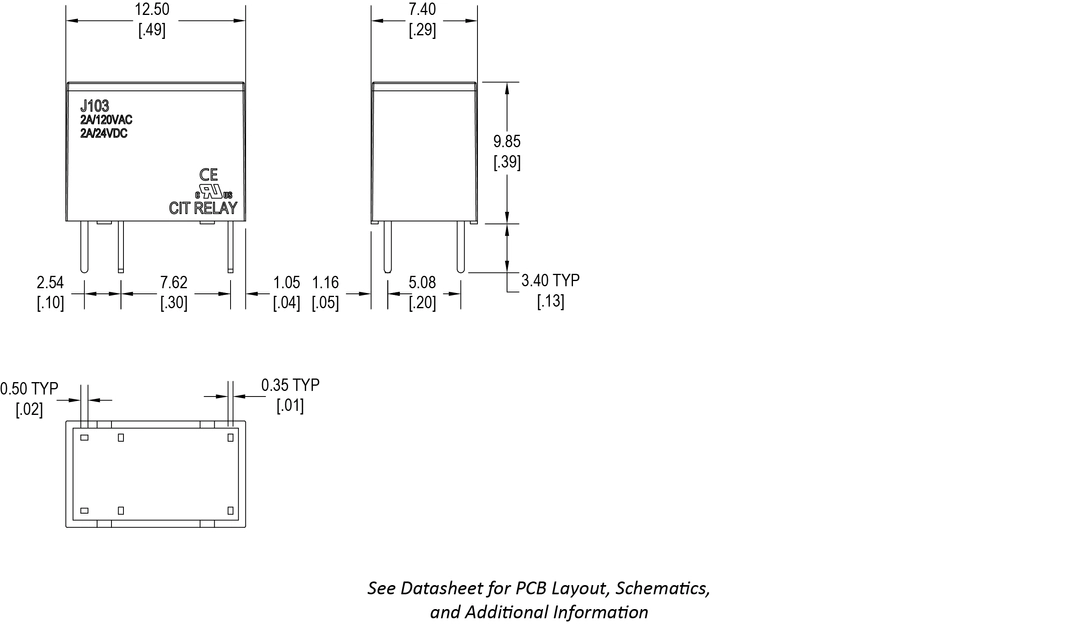

Dimensional Drawing
