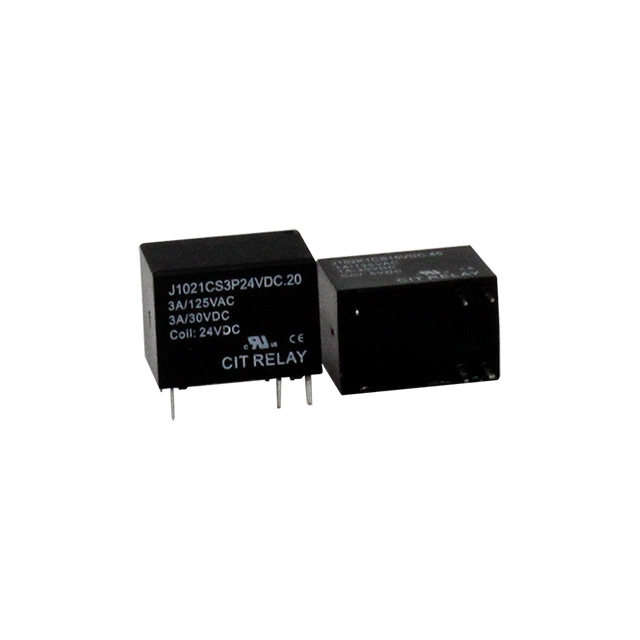

J102 Series
The J102 Series relay offers high sensitivity in a super light-weight package. With PC pin mounting, the J102 Series is ideal for high density mounting with dimensions of 15.5 x 10.5 x 11.25mm. Contact arrangement options are 1A, 1B, or 1C. Coil voltage choices range from 3VDC up to 24VDC with coil power options of .20W, .36W or .45W. UL Agency approval is E197851.
Features
Highly Sensitive, Super Light Weight, Low Coil Power Consumption, PC Board Mounting, Ideal for High Density Mounting
Specification
Contact Rating
AgNi: 3A and 5A@125VAC General Purpose, 3A and 5A@30VDC Resistive; Ag: 1A and 3A@120VAC General Purpose, 1A and 3A@30VDC Resistive, Pilot Duty 270VA 120VAC
Contact Forms
1A, 1B, 1C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC
Coil Power
.20W, .36W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

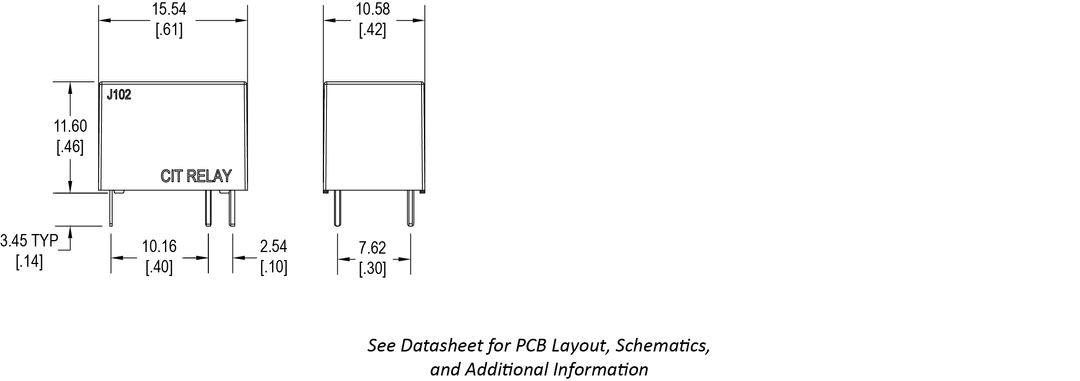

Dimensional Drawing
