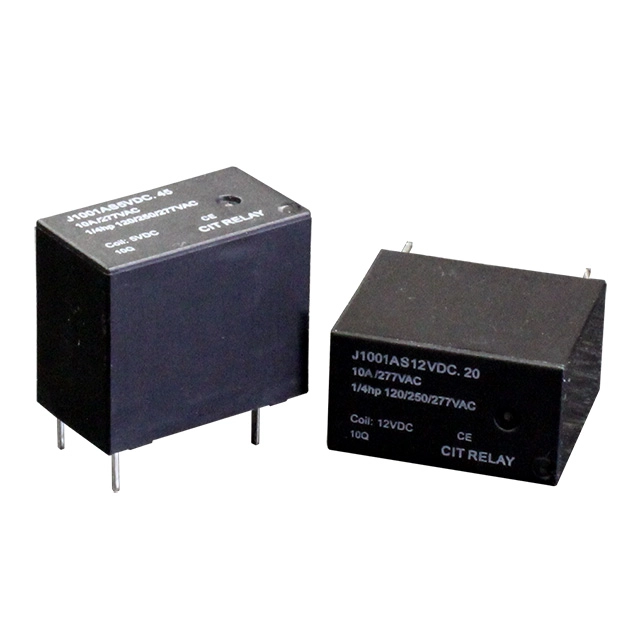

J100 Series
With switching capacity up to 10A, the J100 Series relay offers a small, light-weight package. Low coil power consumption with high contact load, contact arrangement is 1A with voltage options from 3VDC up to 48VDC. Coil Power options are .20W or .45W. The J100 Series dimensions are 18.29 x 10.28 x 15.49mm. UL Agency approval is E197851.
Features
Switching Capacity up to 10A, Small Size and Light Weight, Low Coil Power Consumption, High Contact Load
Specification
Contact Rating
10A@120VAC Resistive, 10A@277VAC Resistive, 5A@240VAC Resistive, 5A@244VAC General Purpose, 3A@30VDC Resistive, TV-5@120VAC, 1/4hp@120/240/277VAC
Contact Forms
1A
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 18VDC, 24VDC, 48VDC
Coil Power
.20W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

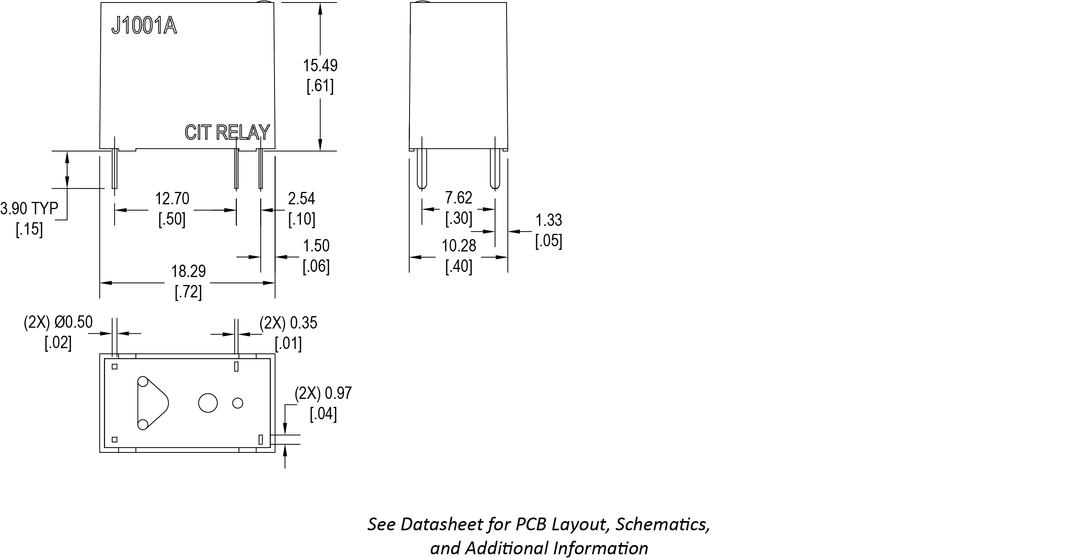

Dimensional Drawing
