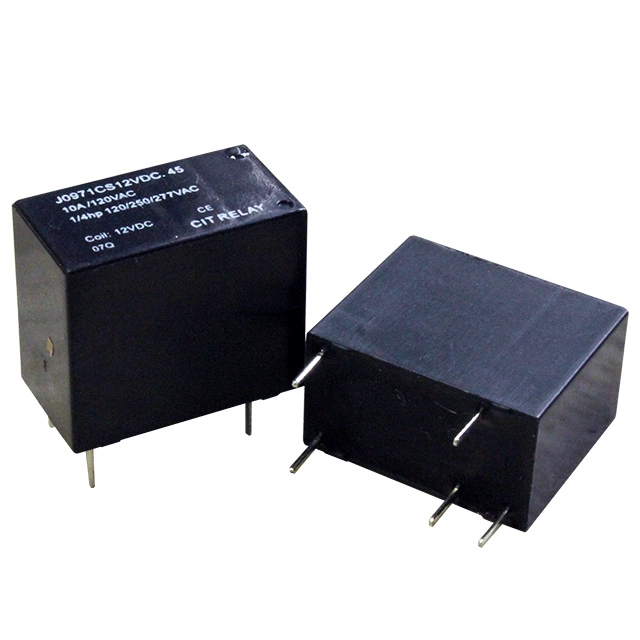

J097 Series
The J097 Series relay offers switching capacity up to 10A in a small and light weight package. Measuring 18.02 x 9.95 x 15.3mm, the J097 Series has 1C contact arrangement with coil voltage options from 3VDC up to 48VDC with coil resistance of .45W. PC pin mounting is standard. UL Agency approval is E197851.
Features
Switching Capacity up to 10A, Small Size and Light Weight, Low Coil Power Consumption, High Contact Load
Specification
Contact Rating
10A @ 120VAC/277VAC, 5A @240VAC, 3A@30VDC, TV-5@120VAC, 1/4hp @ 120/240/277VAC
Contact Forms
1C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 18VDC, 24VDC, 48VDC
Coil Power
.45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

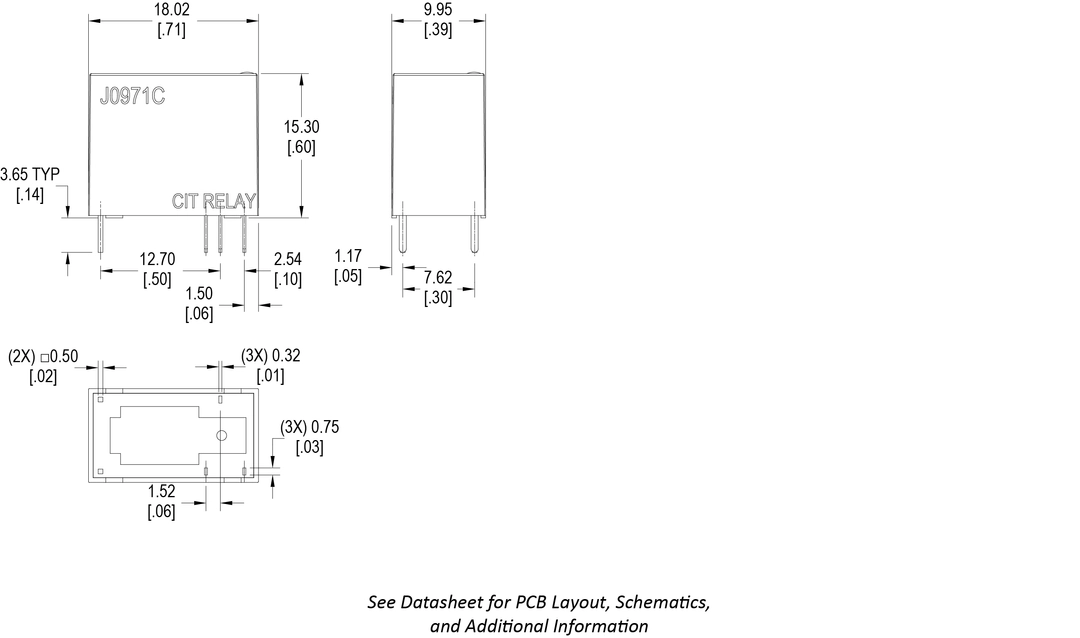

Dimensional Drawing
