ES Series
The round, illuminated ES Series pushbutton switch is available with bi-color LED options and a matte body finish. Actuator options include round, flat, raised and now square with a square frame. IP67 process sealed, the ES Series is SPST normally open or SPST normally close and momentary or latching with solder lug or wire assembly terminals.
Features
Bi-Color LED Option, Matte Finish, Round, Round with Flat, Round with Flat and LED, Square or Raised Actuator Options with, Wire Assembly Option, IP67 Sealing Degree Standard
Specification
Electrical Ratings
125mA@50VDC, 125mA@125VAC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPST NO, SPST NC
Latching Option
Momentary, Latching
Terminal Options
Solder Lug, Wire Assembly
Illumination Options
LED

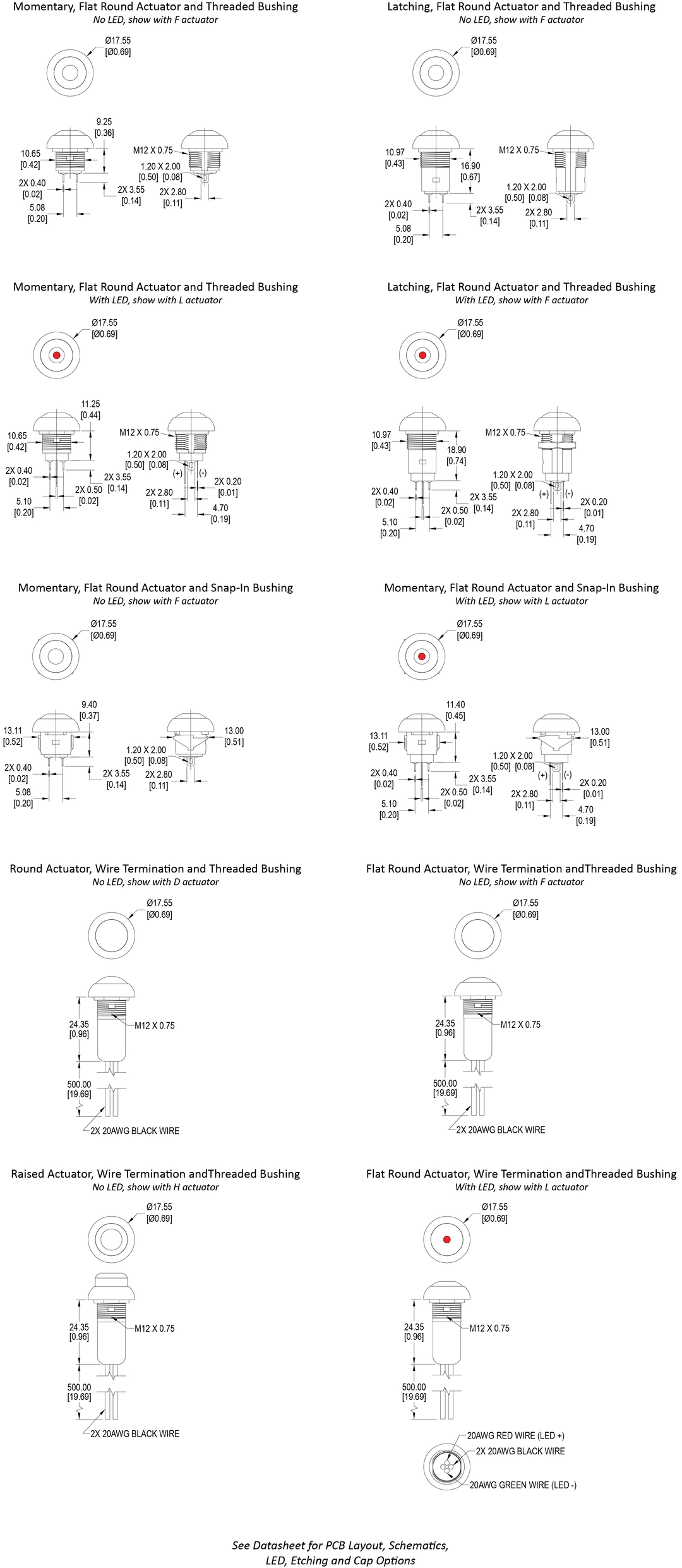

Dimensional Drawing
