DS Series

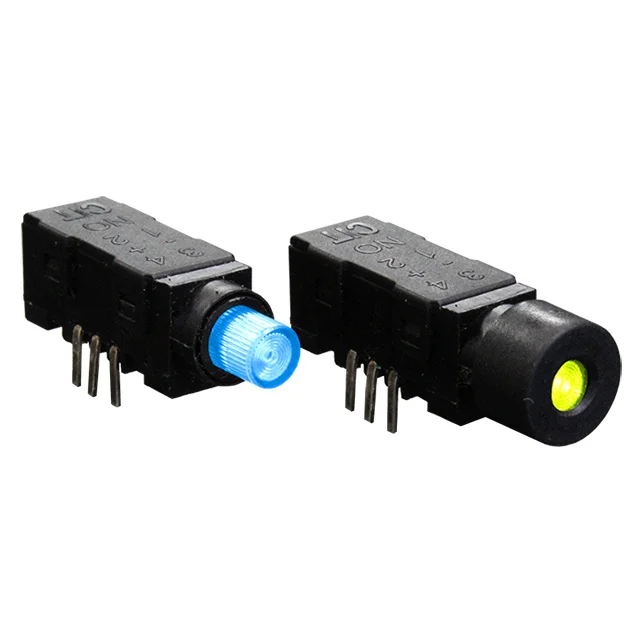

The horizontal pushbutton DS Series is available with bi-color LED illumination and multiple cap options. Offering SPST normally open or DPST normally open, the DS Series offers actuator travel of 2mm.
Features
Horizontal Style, Bi-Color LED Option, PC Mount, Available with or without Cap
Specification
Electrical Ratings
200mA@30VDC
Number Of Poles
SPST NO, DPST NO
Latching Option
Momentary
Terminal Options
PC Pin
Illumination Options
LED

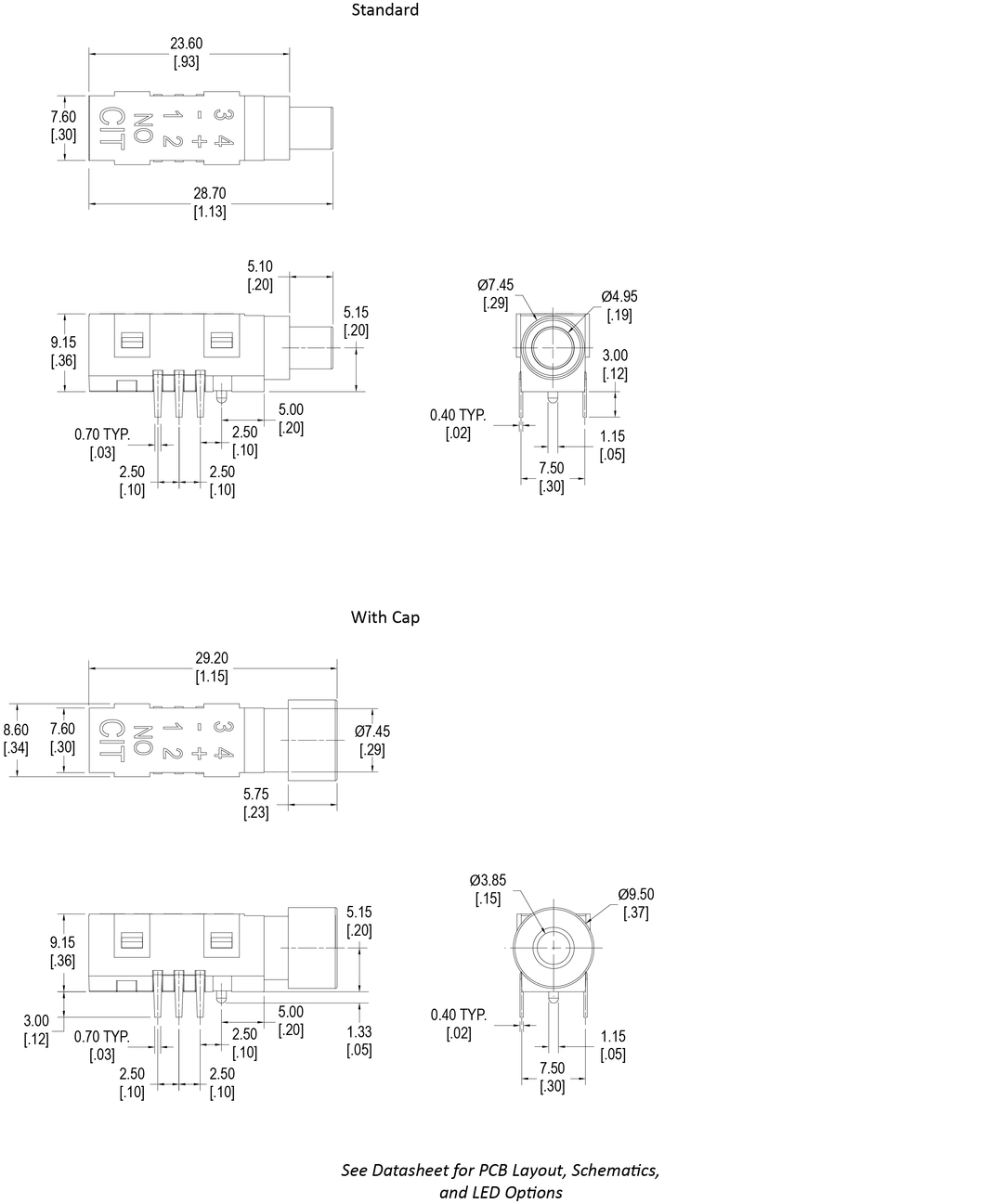

Dimensional Drawing
