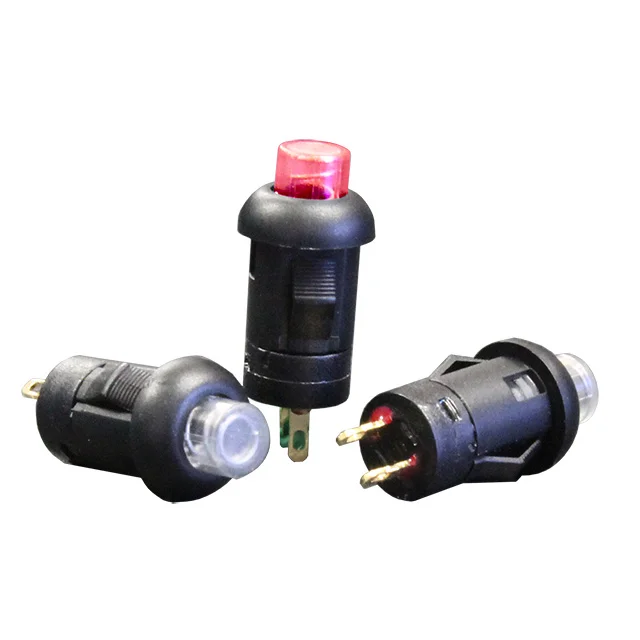

DG Series
The DG Series illuminated pushbutton switch is available with bi-color LED choices of red, green, yellow, blue and white. Panel mount and small in size the DG series is SPST and momentary, with silver or gold contact option.
Features
Bi-Color LED Option, Panel Mount, Gold or Silver Contacts
Specification
Electrical Ratings
.4VA@20VDC, .4VA@20VAC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
PC Pin
Illumination Options
LED

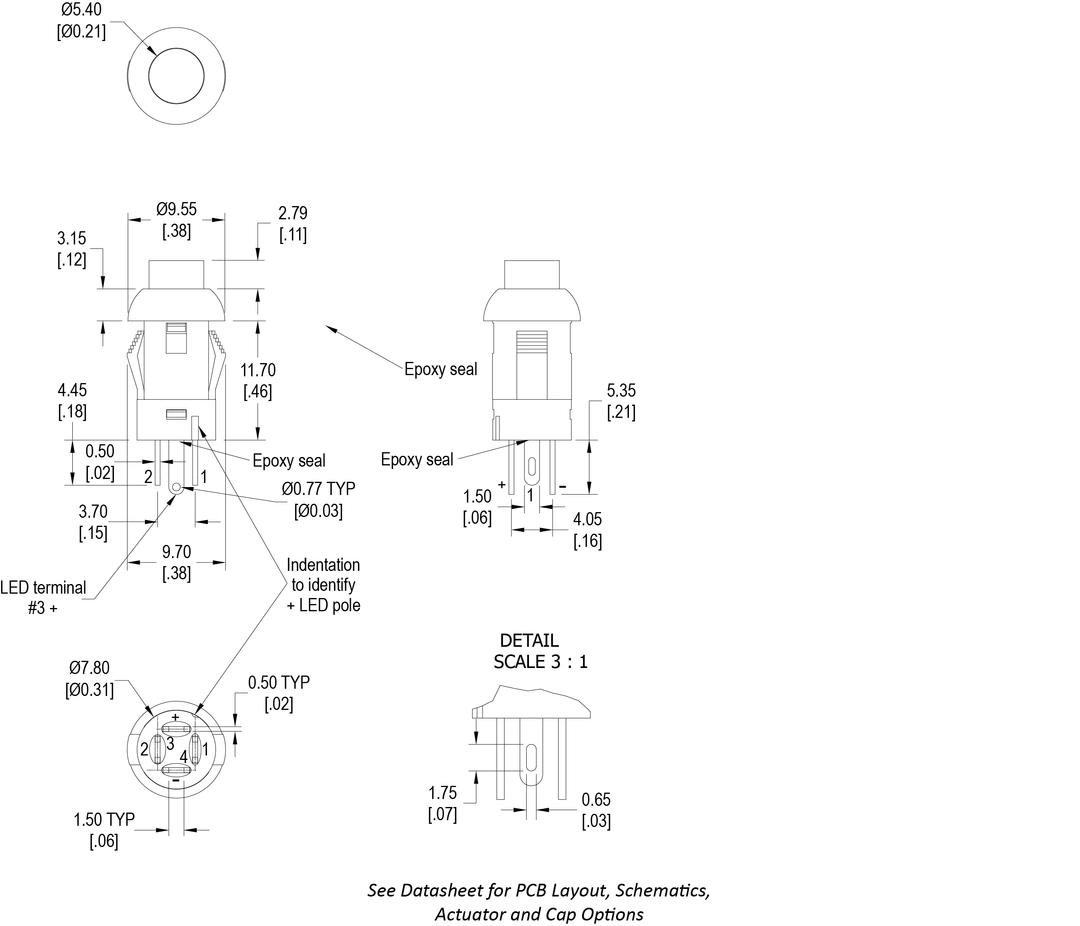

Dimensional Drawing
