CST Series
Available SPDT or DPDT with many function options, the CST Series ultra-miniature toggle switch is IP67 process sealed and offers multiple latching options. Terminal options include PC pin, horizontal mount right angle PC pin, or vertical mount right angle PC pin. Gold plated contacts are standard.
Features
Sub-Miniature Size, IP67 Process Sealed, Single or Double Pole Option, Gold Plated Contacts, PC Pin, Vertical or Horizontal Mount
Specification
Electrical Ratings
.4VA@20VAC or VDC max
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPDT, DPDT
Latching Option
Multiple
Terminal Options
PC Pin, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin

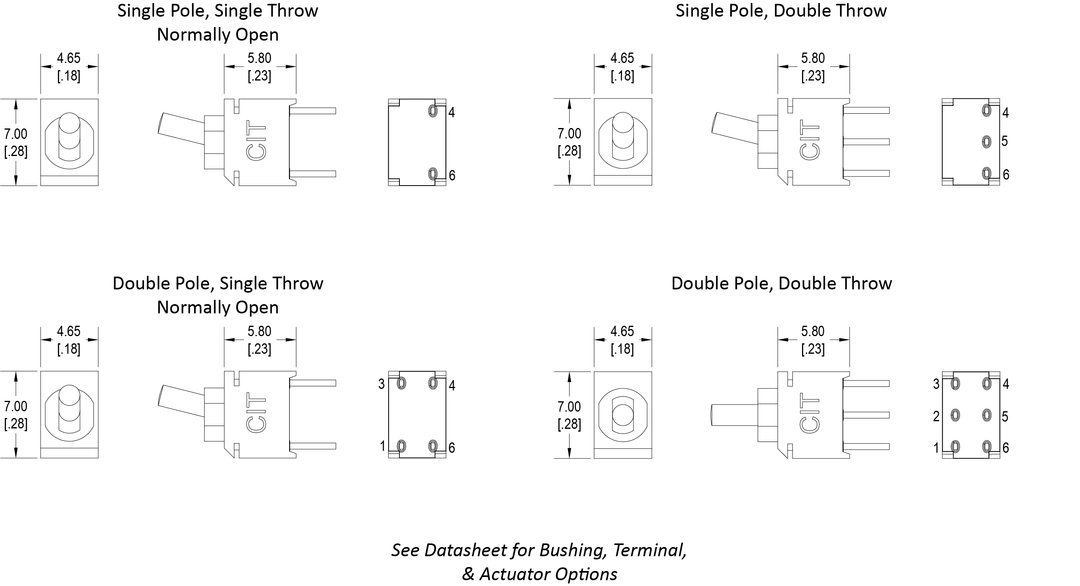

Dimensional Drawing
