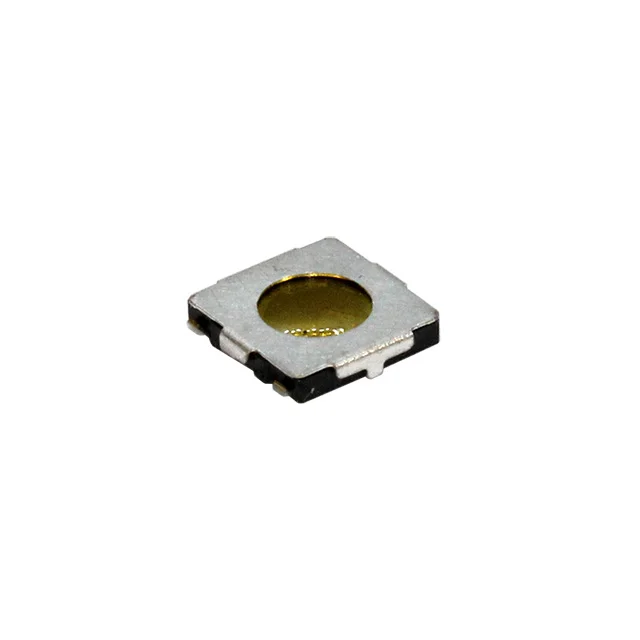

CS1214 Series
Ultra-low profile and surface mount, the CS1214 offers a flat or extended actuator option. Actuator travel is .25mm with actuation force choices of 160gF or 260gF.
Features
Surface Mount, Flat or Extended Actuator Option, Gull Wing or J-Lead Terminal Options, Actuator Force Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Gull Wing, J Lead

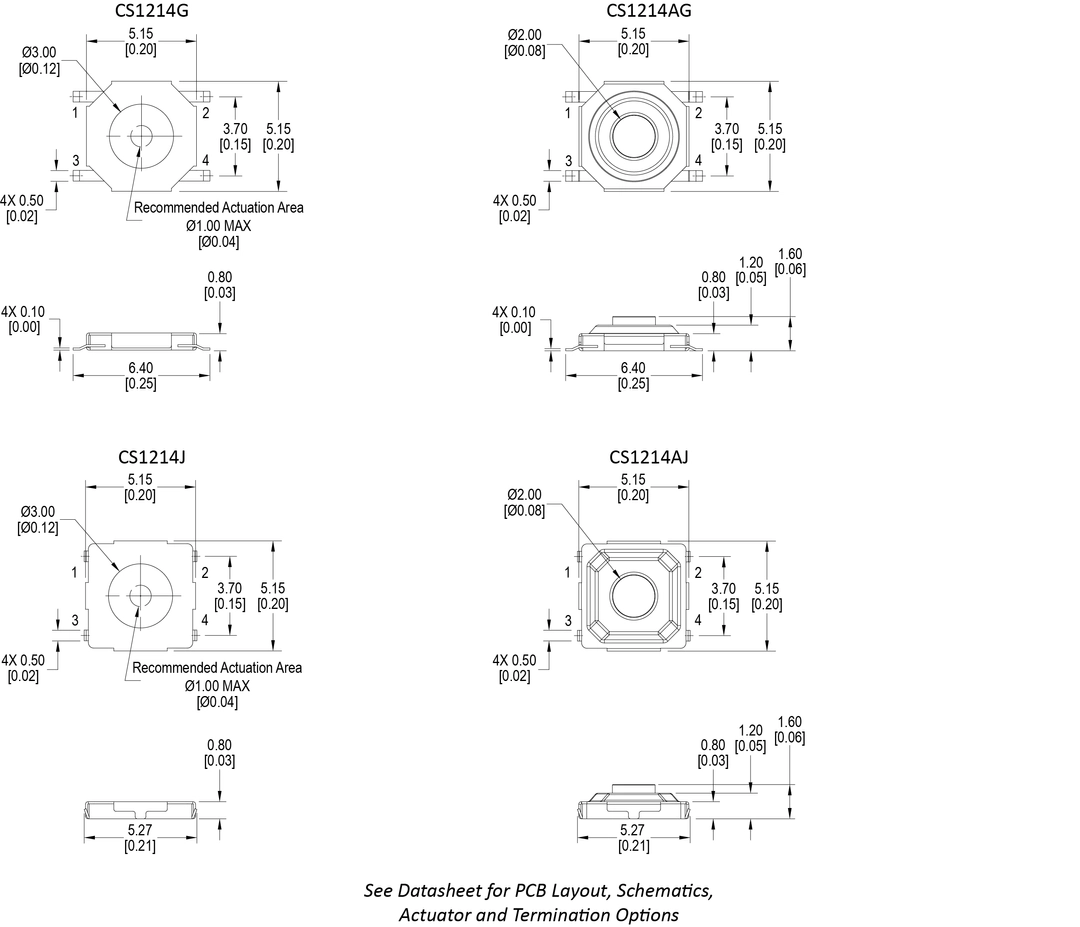

Dimensional Drawing
