CS1209

CS1209 Series

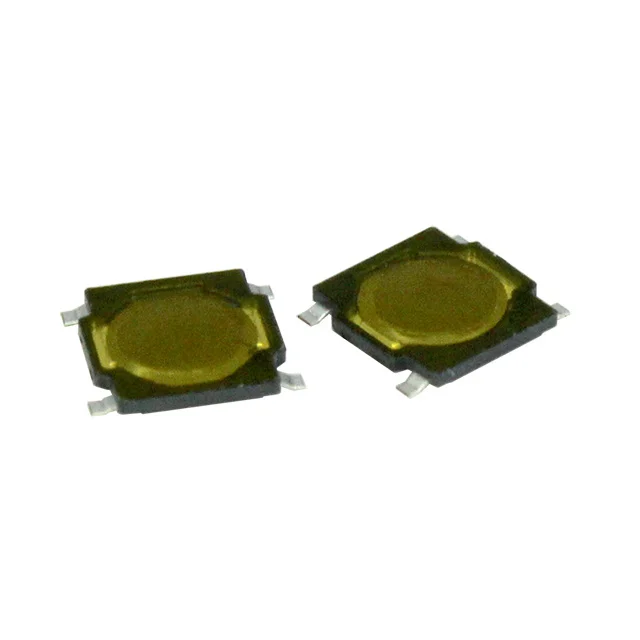

Ultra thin and surface mount, the CS1209 is SPST and momentary. Actuation force is 160gF or 260gF with travel of .25mm. The body size is 4.5mm square with gull wing termination.

Features

Ultra Thin, Surface Mount, Two Actuation Force Options

Datasheet in PDF

Specification

Electrical Ratings

50mA@50VDC

Number Of Poles

SPST

Latching Option

Momentary

Terminal Options

Surface Mount

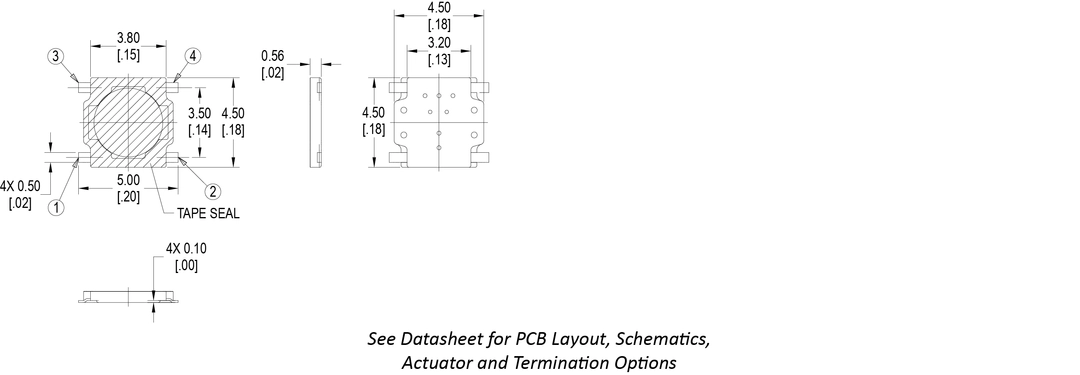

Dimensional Drawing
