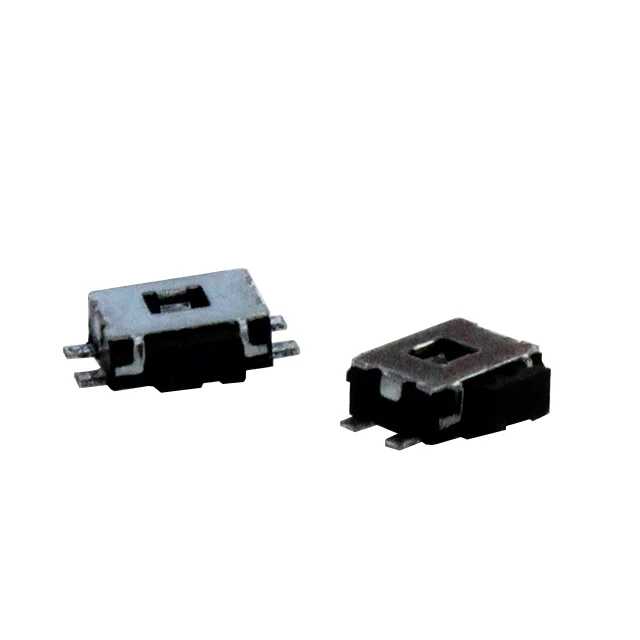

CS1207 Series
Right angle and surface mount while offering both gull wing and J-lead termination, the CS1207 is available with grounding tabs or a mounting stem. SPST and momentary, actuation force is 160gF or 250gF with actuator travel of .30mm.
Features
Right Angle, Surface Mount, J-Lead or Gull Wing Option, Mounting Stem Options, Multiple Actuation Force Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Surface Mount

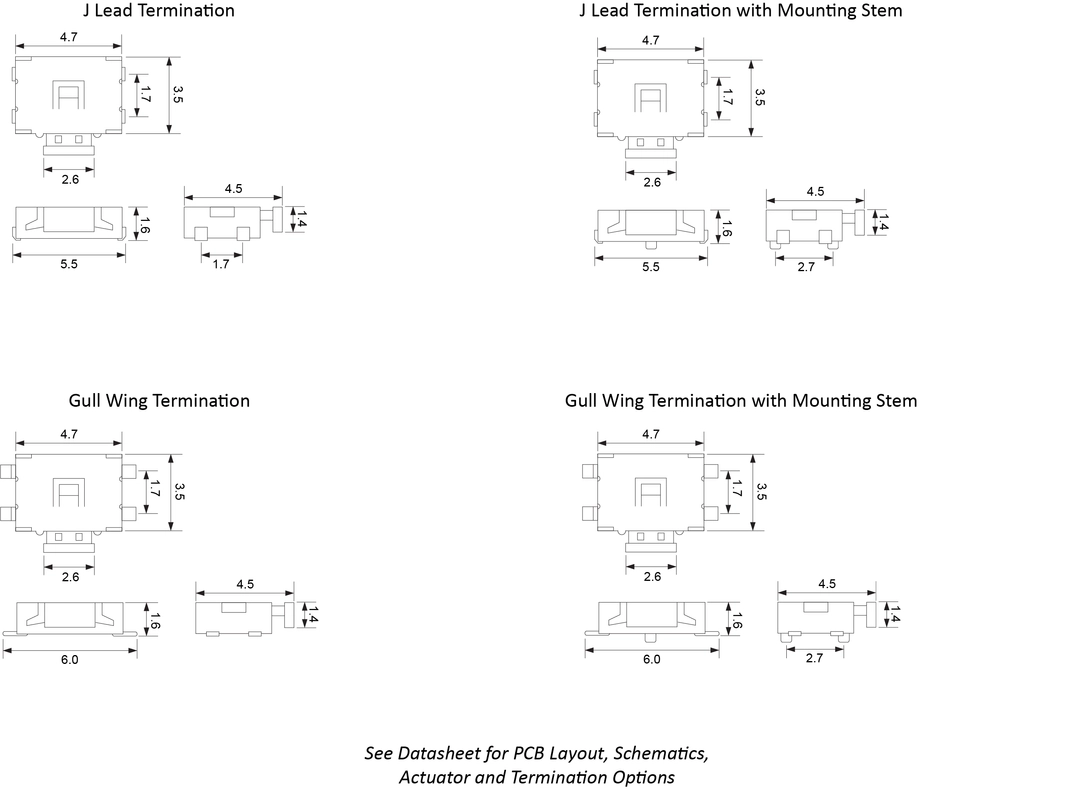

Dimensional Drawing
