CS1204

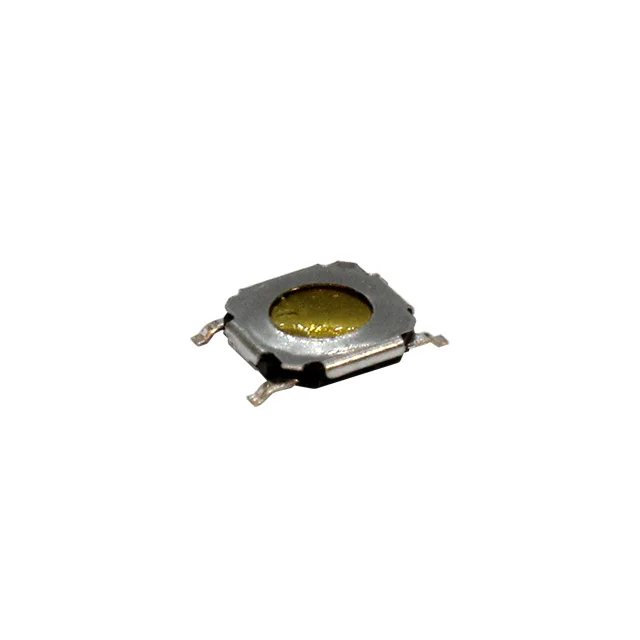

CS1204 Series

Low profile and surface mount, the CS1204 offers an extended actuator option with actuation force choices of 160gF or 260gF. Body size is 5.2mm square.

Features

Surface Mount, Raised Actuator Option, Multiple Actuator Force Options

Datasheet in PDF

Specification

Electrical Ratings

50mA@50VDC

Number Of Poles

SPST

Latching Option

Momentary

Terminal Options

Surface Mount, Grounding Pin

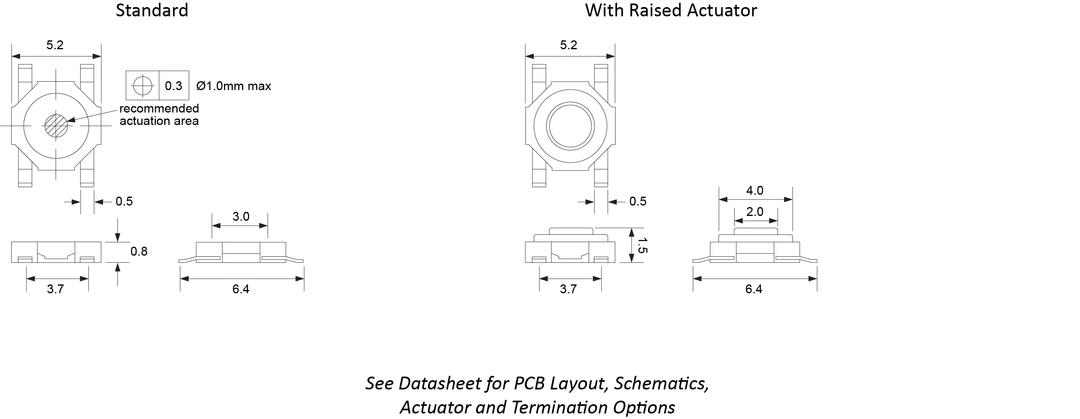

Dimensional Drawing
