CS1109 Series

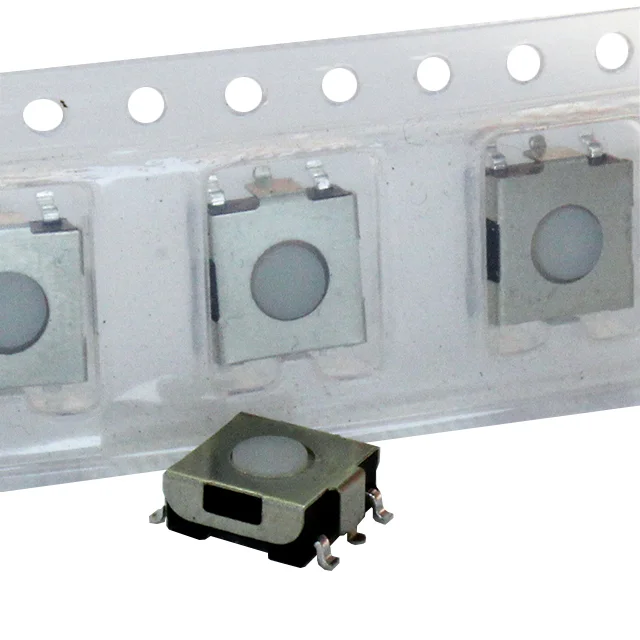

With a 6.2mm square body, the surface mount CS1109 tactile switch is available with a grounding pin option. Multiple actuator lengths range from 2.6mm up to 3.1mm. Actuation force is 160gF with .25mm actuator travel.
Features
Surface Mount, Grounding Pin Option, Multiple Actuator Length Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Surface Mount

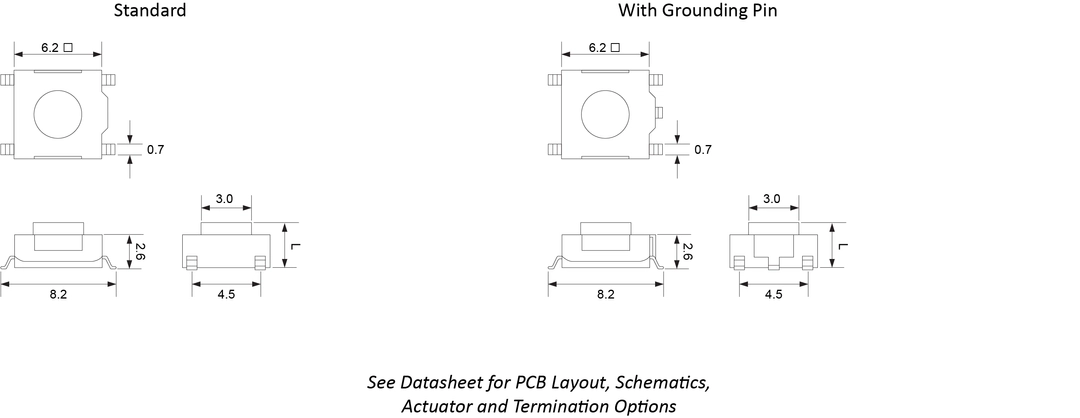

Dimensional Drawing
