CS1103 Series

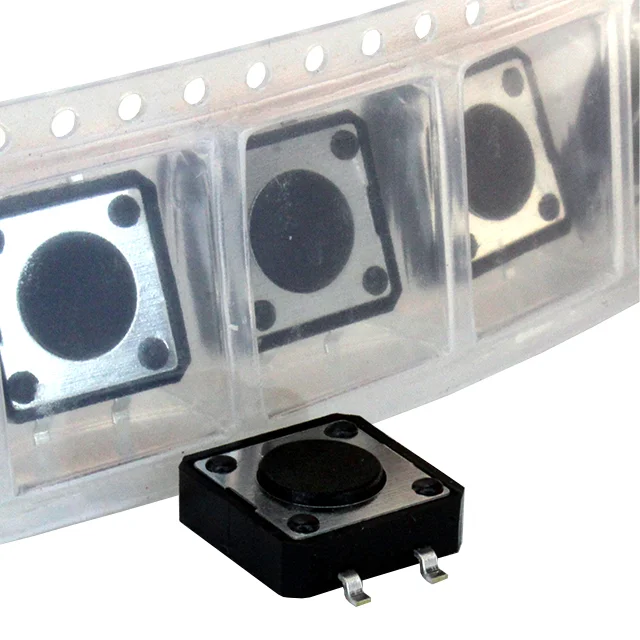

Momentary and SPST, the CS1103 offers a 12mm square body with gull wing termination. Actuation force options range from 180gF up to 260gF with actuator travel of .30mm. Actuator length choices are 4.3mm , 7.5mm, G or T actuator style. Packaging is Tape & Reel.
Features
Surface Mount 12mm Square, Multiple Actuator Options, Multiple Cap Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Surface Mount
Dimensional Drawing
