BNT Series

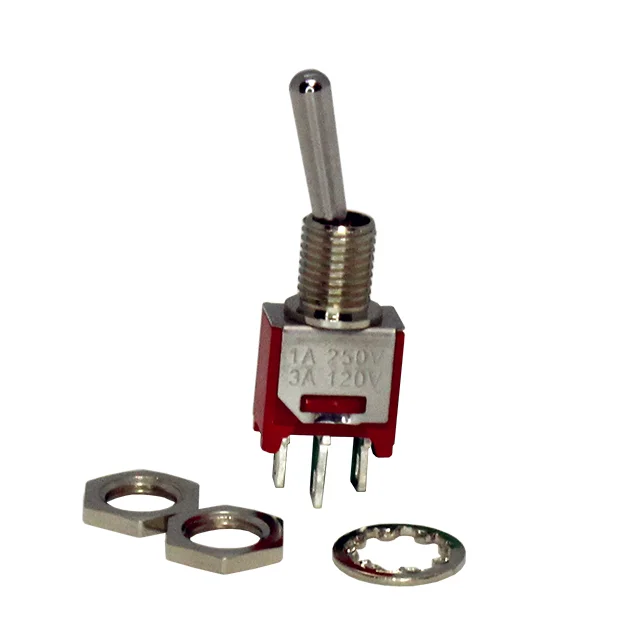

Available SPDT or DPDT with numerous functions, the BNT Series sub-miniature toggle switch offers multiple latching options. Terminal options include solder lug, PC pin, quick connect, horizontal mount right angle PC pin or snap-in bracket, vertical mount right angle PC in or snap-in bracket, PC pin support bracket or snap-in support bracket. The BNT Series offers many bushing options with actuator length ranging from 5.33mm up to 10.41mm.
Features
Sub-Miniature Size, Flat Toggles with Anti-Rotation Option, Wide Variety of Actuator Styles, Gold Contacts Available
Specification
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Number Of Poles
SPDT, DPDT
Latching Option
Multiple
Terminal Options
Solder Lug, PC Pin, Horizontal Mount Right Angle PC Pin or Snap-In, Vertical Mount Right Angle PC Pin or Snap-In, PC Pin with Support Bracket or Snap-In Support Bracket

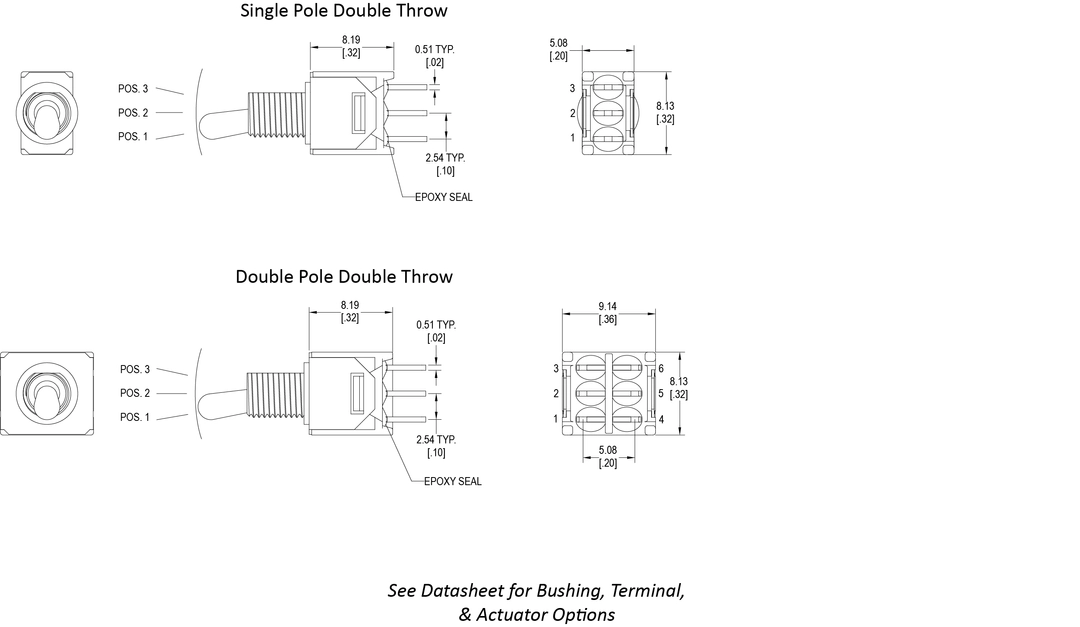

Dimensional Drawing
