BNR Series

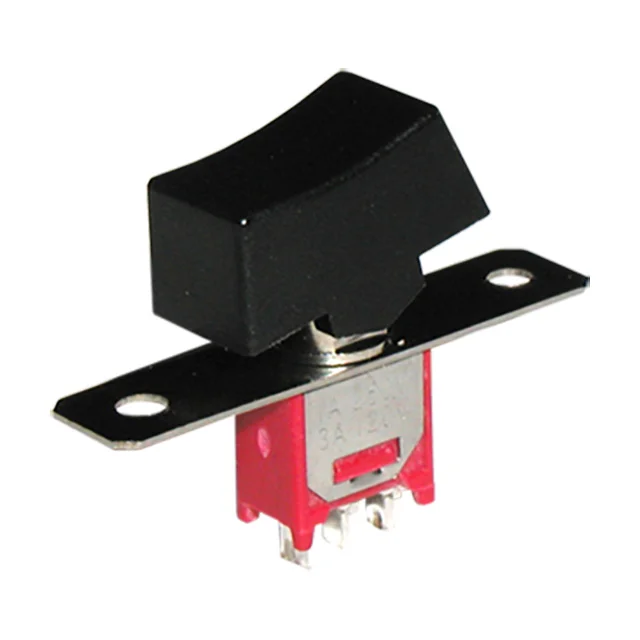

Available up to DPDT with 6 functions, the BNR Series sub-miniature rocker switch offers rocker panel mount and rocker PC mount actuator styles. Terminal options include solder lug, PC pin, horizontal mount right angle PC pin or snap-in bracket, vertical mount right angle PC pin or snap-in bracket, PC pin with support bracket or snap-in support bracket. Gold contacts are also available.
Features
Sub-Miniature Size, Up to 4 Poles with 6 Functions, Wide Variety of Actuator Styles, Gold Contacts Available
Specification
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Sealing Degree
Epoxy Seal
Number Of Poles
SPDT, DPDT
Latching Option
Multiple
Terminal Options
Solder Lug, PC Pin, Horizontal Mount Right Angle PC Pin or Snap-In Bracket, Vertical Mount Right Angle PC Pin or Snap-In Bracket, PC Pin with Support Bracket or Snap-In Support Bracket

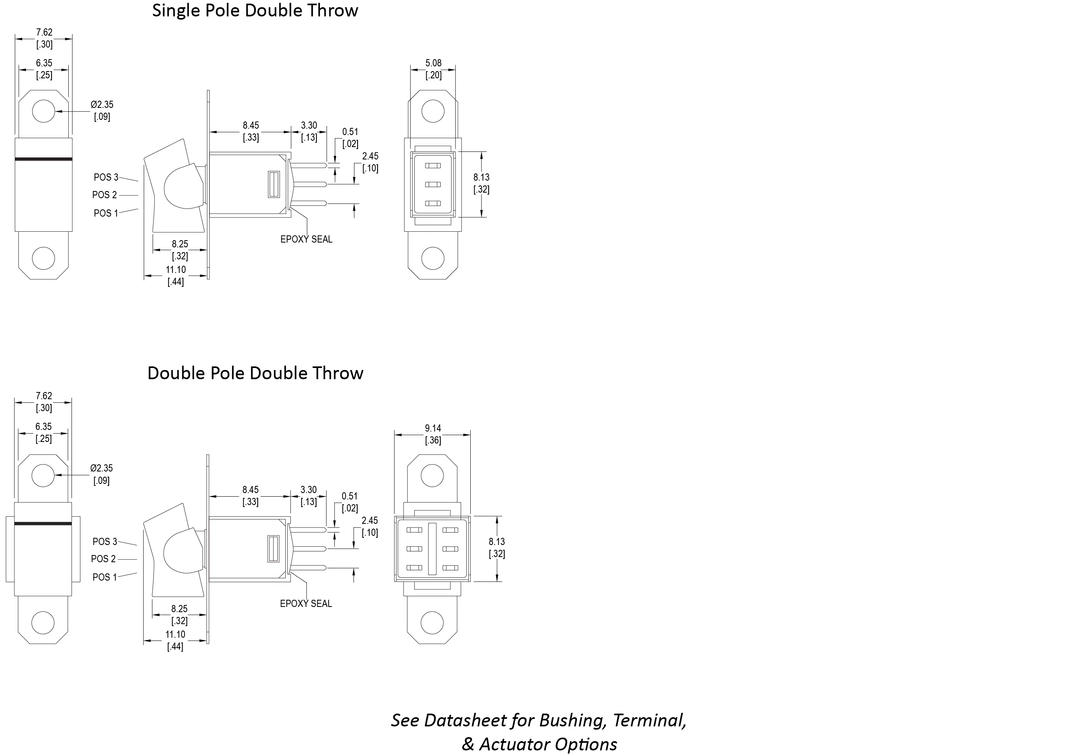

Dimensional Drawing
