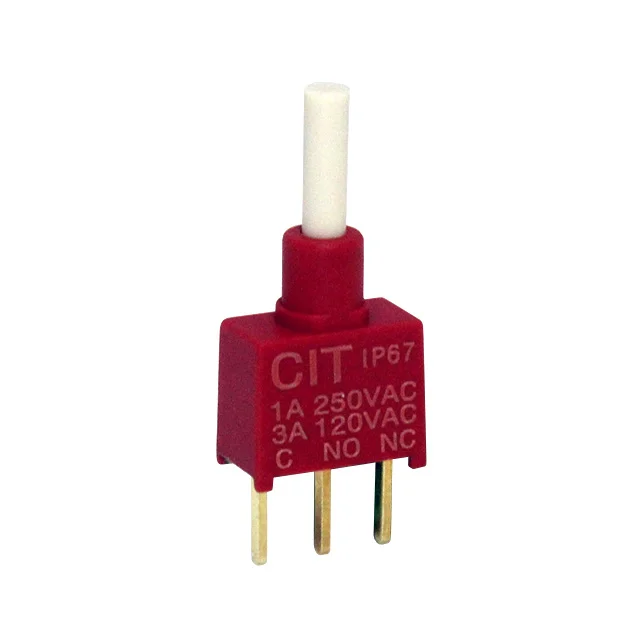

ASP Series
Miniature in size and IP67 process sealed, the ASP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT and momentary, the ASP offers numerous bushing options, cap styles and cap colors.
Features
Miniature Size, IP67 Process Sealed, Wide Variety of Terminals, Panel Mount, Gold Contacts Available
Specification
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPDT, DPDT
Latching Option
Momentary
Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle, Vertical Mount Right Angle, PC Pin with Support Bracket, Snap-In Support Bracket

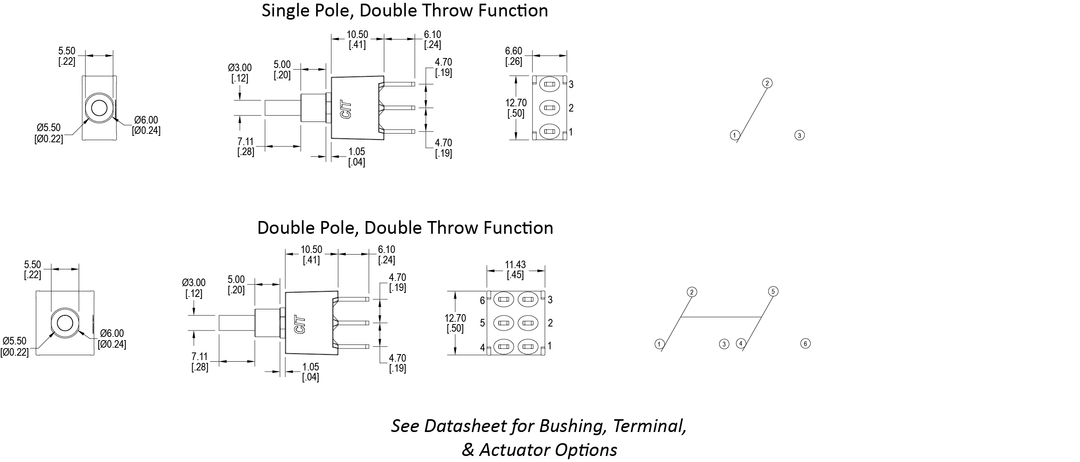

Dimensional Drawing
