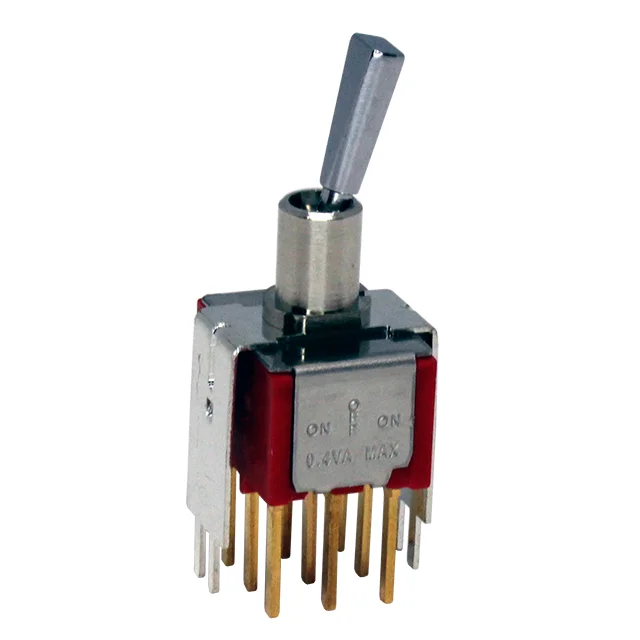

ANT Series
Available up to 4PDT with numerous functions, the ANT Series miniature toggle switch offers multiple latching options. Terminal options include solder lug, PC pin, quick connect, horizontal mount right angle PC pin or snap-in bracket, vertical mount right angle PC in or snap-in bracket, PC pin support bracket or snap-in support bracket. The ANT Series offers many bushing options with actuator length ranging from 5.08mm up to 26.3mm. Multiple actuator covers with choices in cover colors are also available.
Features
Miniature Size, Flat Toggles with Anti-Rotation Option, Wide Variety of Actuator Styles, Gold Contacts Available
Specification
Electrical Ratings
5A@120VAC, 5A@28VDC, 2A@250VAC
Number Of Poles
SPDT, DPDT, 3PDT, 4PDT
Latching Option
Multiple
Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle PC Pin or Snap-In, Vertical Mount Right Angle PC Pin or Snap-In, PC Pin with Support Bracket or Snap-In Support Bracket

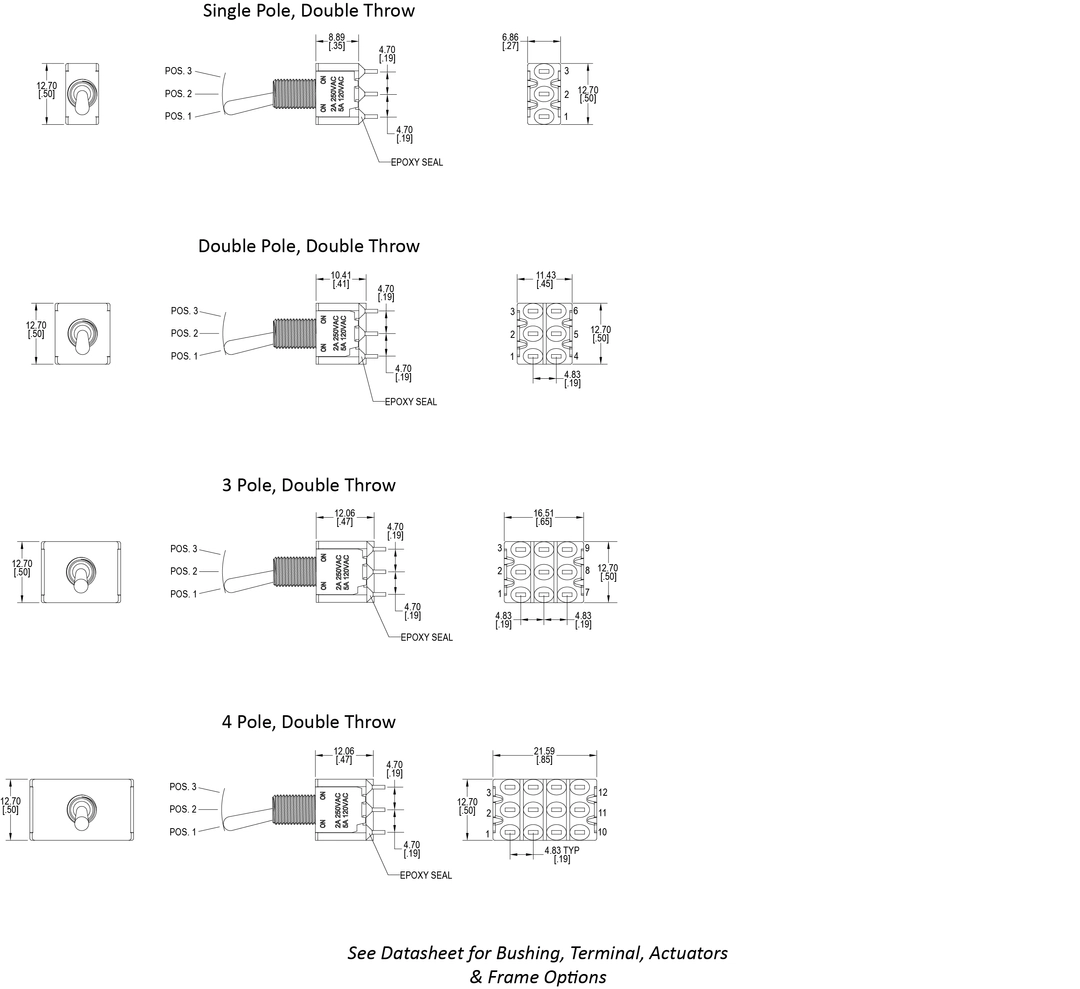

Dimensional Drawing
