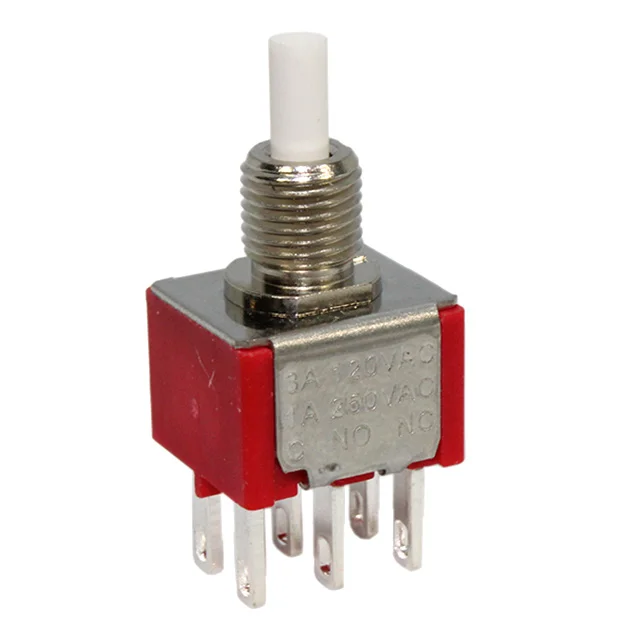

ANP Series
The miniature size ANP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the ANP offers numerous bushing options, cap styles and cap colors.
Features
Miniature Size, Wide Variety of Terminals, Panel Mount, Gold Contacts Available
Specification
Electrical Ratings
3A@120VAC, 1A@250VAC
Number Of Poles
SPDT, DPDT
Latching Option
Momentary, Latching
Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle, Vertical Mount Right Angle, PC Pin with Support Bracket, Snap-In Support Bracket

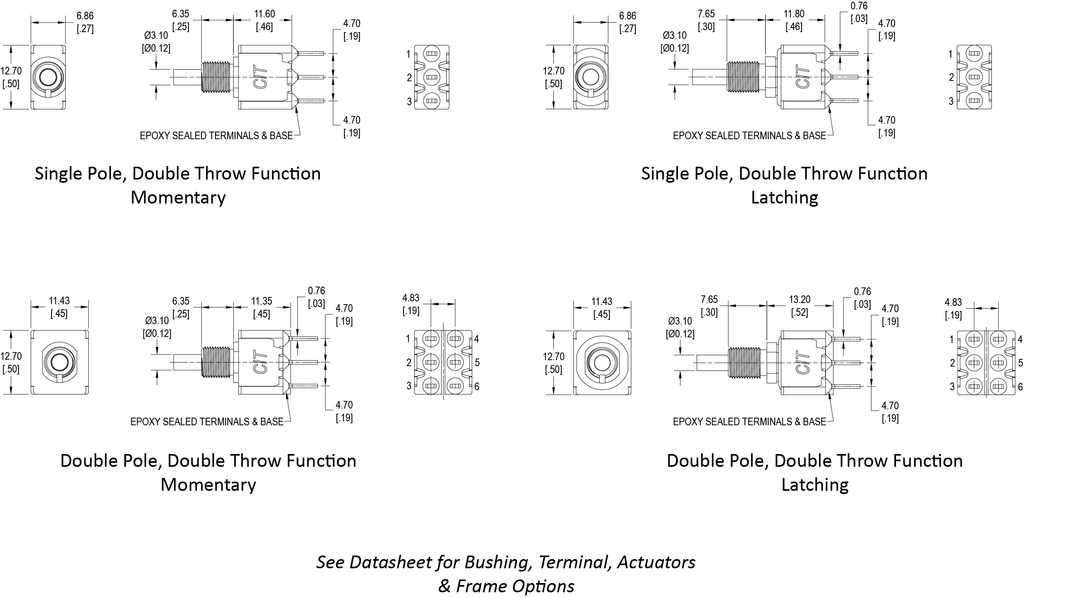

Dimensional Drawing
