AHU Series

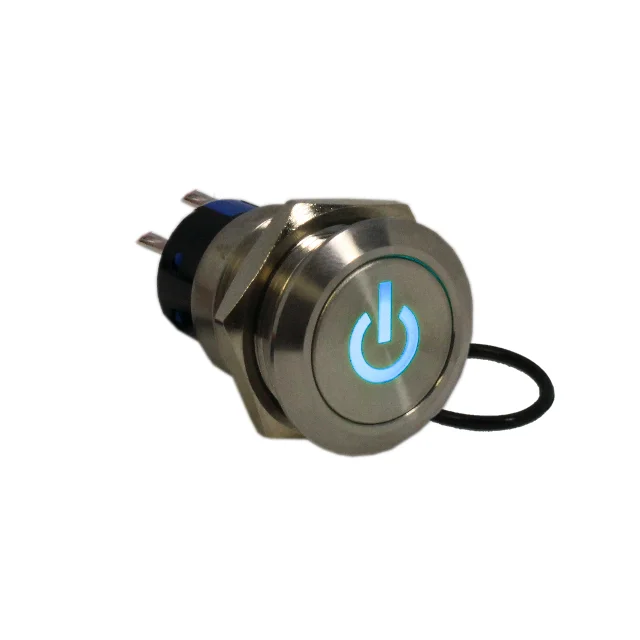

The AHU Series is our UL approved version of the AH Series. 19mm in size, the AHU is available momentary or latching. The flush actuator can be non-illuminated, or bi-color ring or dot illuminated. Also available is an illuminated universal standby symbol. LED color options include red, yellow, green, blue and white. LED voltage ranges from 6VDC to 220VAC.
Features
UL Approved, Vandal Proof, IP67 Sealing Degree, Center Dot or Ring Illumination, 19mm, Panel Mount
Specification
Electrical Ratings
3A@125VAC, 3A@250VAC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPDT, DPDT
Body Diameter
19mm
Latching Option
Momentary, Latching
Terminal Options
Solder Lugs
Illumination Options
LED
LED Voltage
6VDC, 12VDC, 24VDC, 110VAC, 220VAC
Dimensional Drawing
