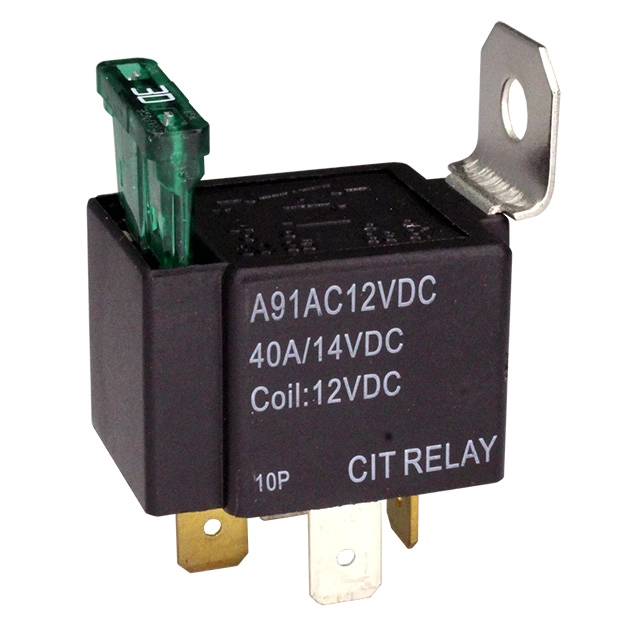

A9 Series
Accommodating a standard automotive fuse, the A9 Series offers switching capacity up to 40A. With a metal mounting tab, the quick connect A9 Series offers 1A contact arrangement with coil voltage of 12VDC or 24VDC with coil power of 1.8W. Dimensions are 35.5 x 25.5 x 21.0.
Features
Switching Capacity up to 40A, Accomodates Standard Sized Automotive Fuse, Insert Mounting Footprint, Metal Mounting Tab
Specification
Contact Rating
40A@14VDC
Contact Forms
1A
Coil Voltage
12VDC, 24VDC
Coil Power
1.8W
Mounting Methods
Quick Connect

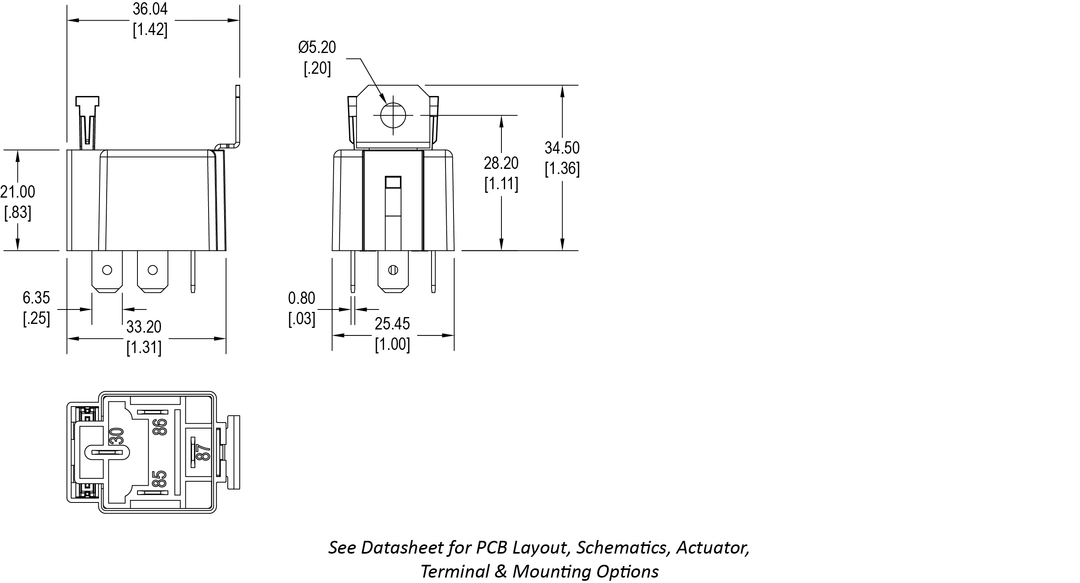

Dimensional Drawing
