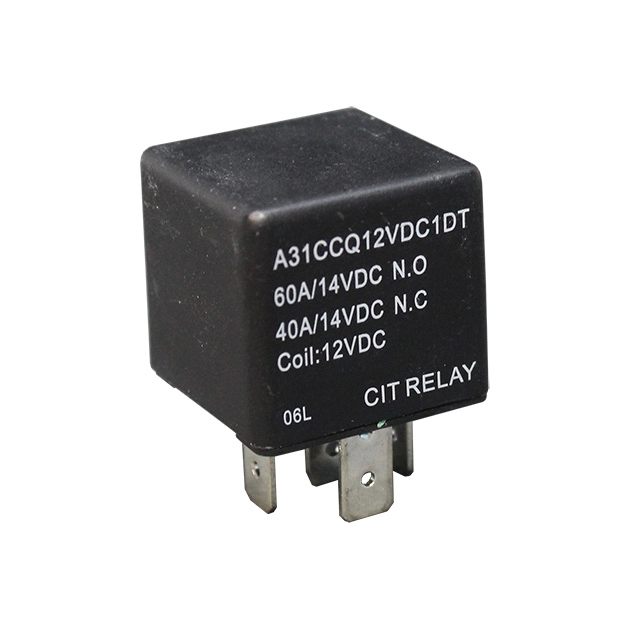

A3 Series
Large switching capacity up to 80A with PC pin or quick connect mounting, the A3 Series is QS-9000 and ISO-9002 certified. Offering both standard and heavy duty contact ratings , the A3 Series is available as 1A, 1B, 1C or 1U. Coil voltage choices are 12VDC or 24VDC, with coil power of 1.8W. Dimensions are 28.5 x 28.5 x 26.5mm.
Features
Large Switching Capacity up to 80A, PC Pin and Quick Connect Mounting, Suitable for Automotive and Lamp Accessories, QS-9000 and ISO-9002 Certified Manufacturing
Specification
Contact Rating
Standard: 1A: 60A@14VDC, 1B: 40A@14VDC, 1C: 60A@14VDC NO, 40A@14VDC NC, 1U: 2x25A@14VDC; Heavy Duty: 1A: 80A@14VDC, 1B: 70A@14VDC, 1C: 80A@14VDC NO, 70A@14VDC NC, 1U: 2x25A@14VDC
Contact Forms
1A, 1B, 1C, 1U
Coil Voltage
12VDC, 24VDC
Coil Power
1.8W
Mounting Methods
PC Pin, Quick Connect

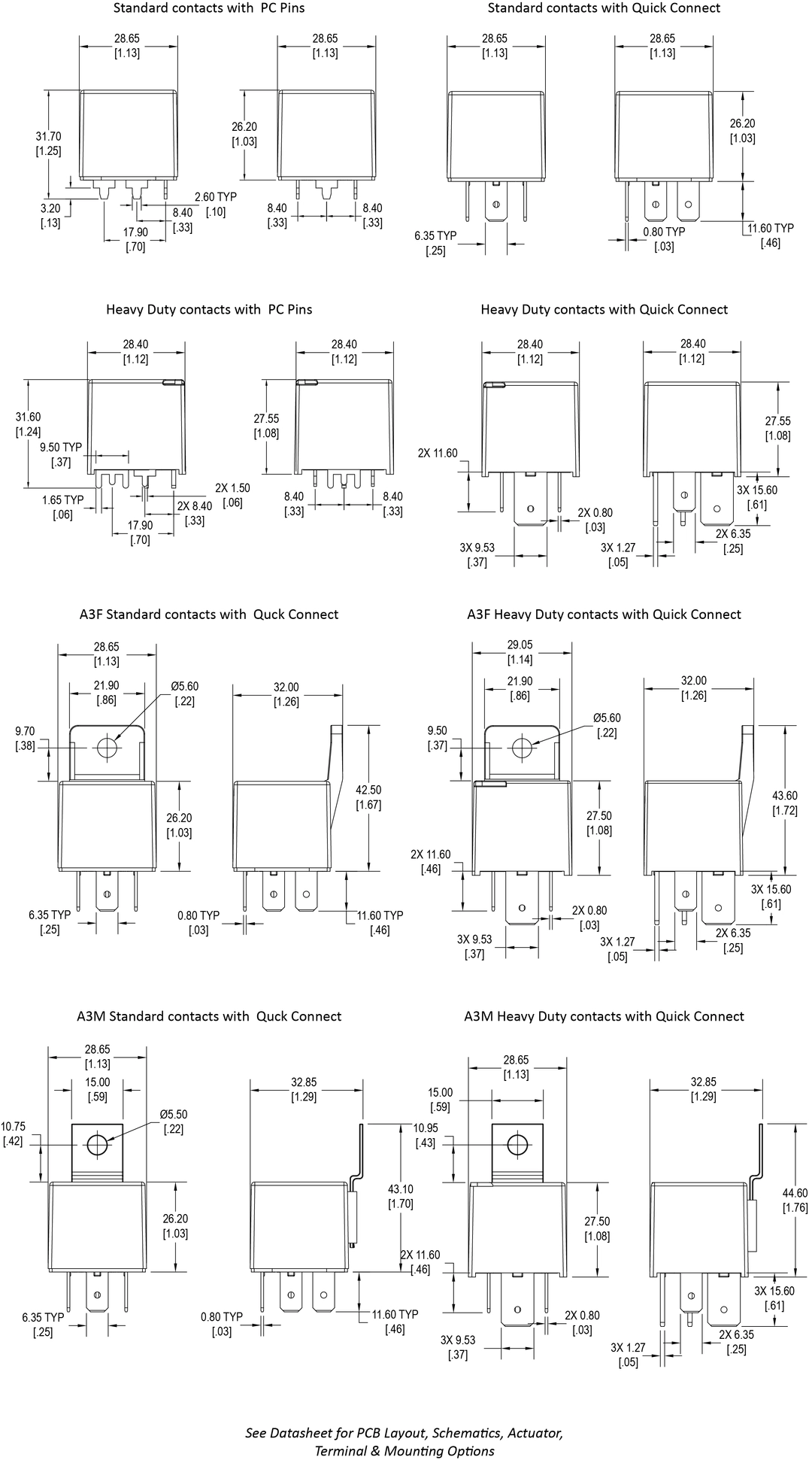

Dimensional Drawing
