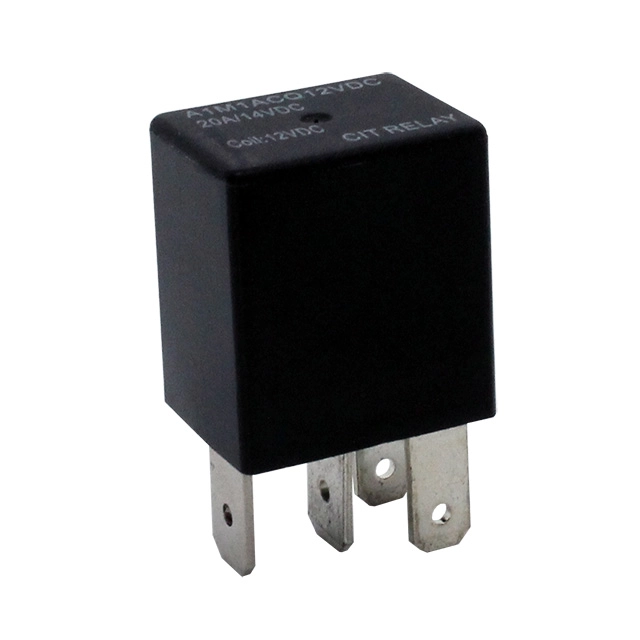

A1M Series
Switching capacity is up to 20A, the A1M Series is suitable for automotive and lamp accessories. Mounting methods are PC pin or quick connect. Contact arrangement options are 1A or 1B with coil power of 1.16W. The A1M Series size is 20.2 x 15.2 x 22.0mm.
Features
Switching Capacity up to 20A, Suitable for Automotive and Lamp Accessories, PC Pin and Quick Connect Mounting
Specification
Contact Rating
1A: 40A@14VDC; 1C: 25A@14VDC
Contact Forms
1A, 1C
Coil Voltage
12VDC, 24VDC
Coil Power
1.5W, 1.8W
Mounting Methods
Quick Connect

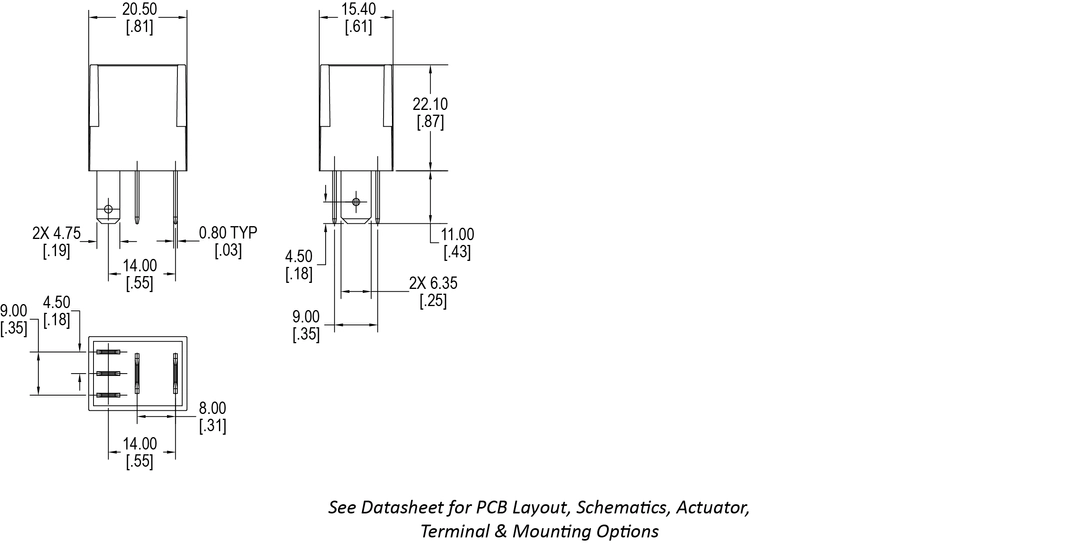

Dimensional Drawing
