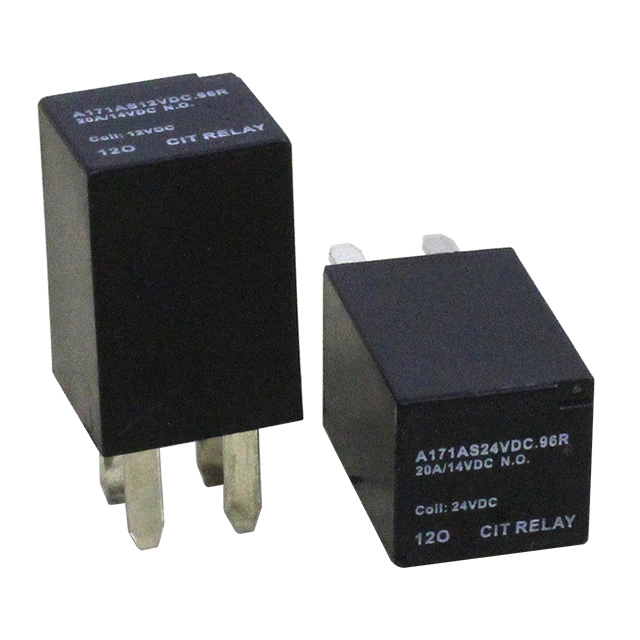

A17 Series
With switching capacity up to 30A, the A17 Series automotive relay is light weight and small in size. Suitable for automotive and lamp accessories, the A17 offers contact arrangement of 1A with coil voltage options of 12VDC or 24VDC and coil power of .96W. PC pin mounted, the A17 Series is 16.5 x 15.5 x 24.3mm in size.
Features
Switching Capacity up to 30A, Light Weight and Small Size, Suitable for Automotive and Lamp Accessories
Specification
Contact Rating
20A@14VDC NO, 30A@14VDC NO
Contact Forms
1A
Coil Voltage
12VDC, 24VDC
Coil Power
.96W
Mounting Methods
PC Pin

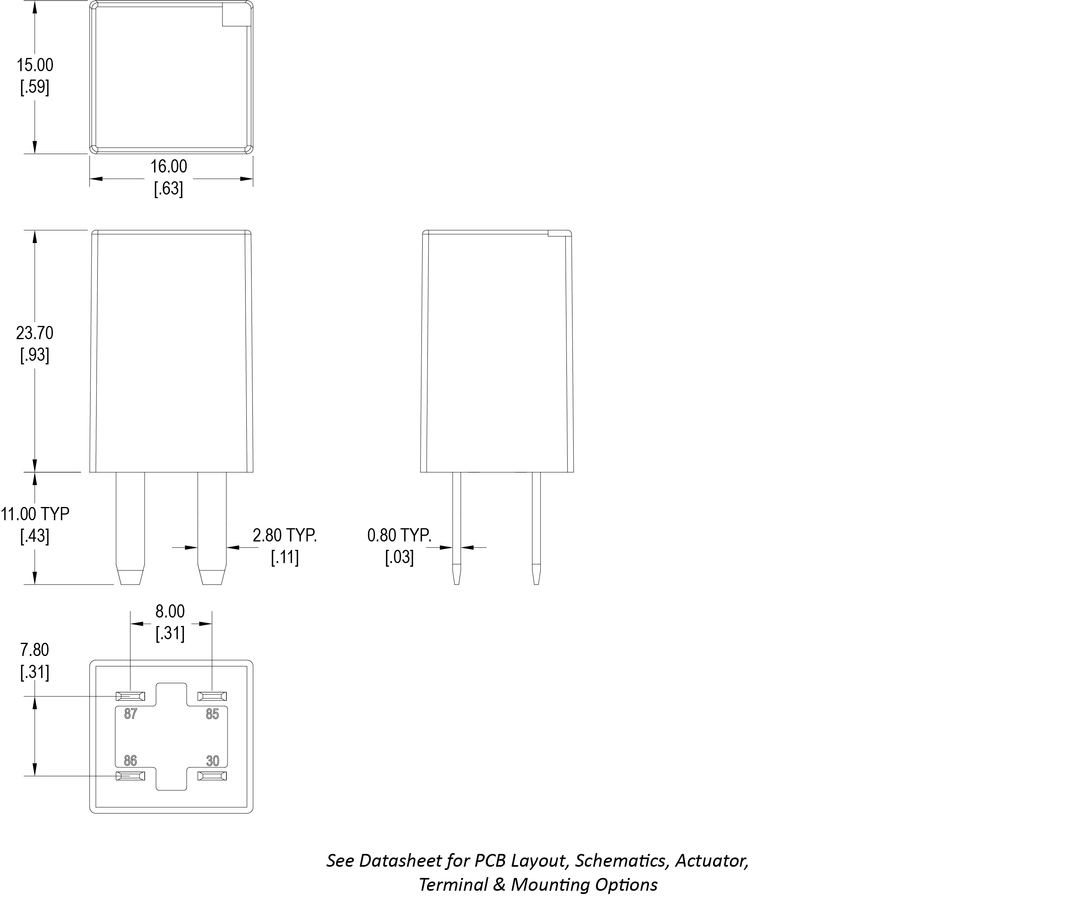

Dimensional Drawing
