1000A Series
The 1000A Series is a UL Approved through-hole, sub-miniature slide switch with a choice of SPDT or DPDT poles. This panel mount switch offers function options including On-None-On and On-Off-On. Actuator length is 3.1mm with termination options of standard PC pin or horizontal mount right angle PC pin. The 1000A Series sub-mini slide is offered with housing of steel and nylon.
Features
Sub-Miniature Size, Standard and Right Angle, Steel and Nylon Housings
Specification
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Number Of Poles
SPDT, DPDT
Latching Option
Multiple
Terminal Options
PC Pin, Horizontal Mount Right Angle PC Pin

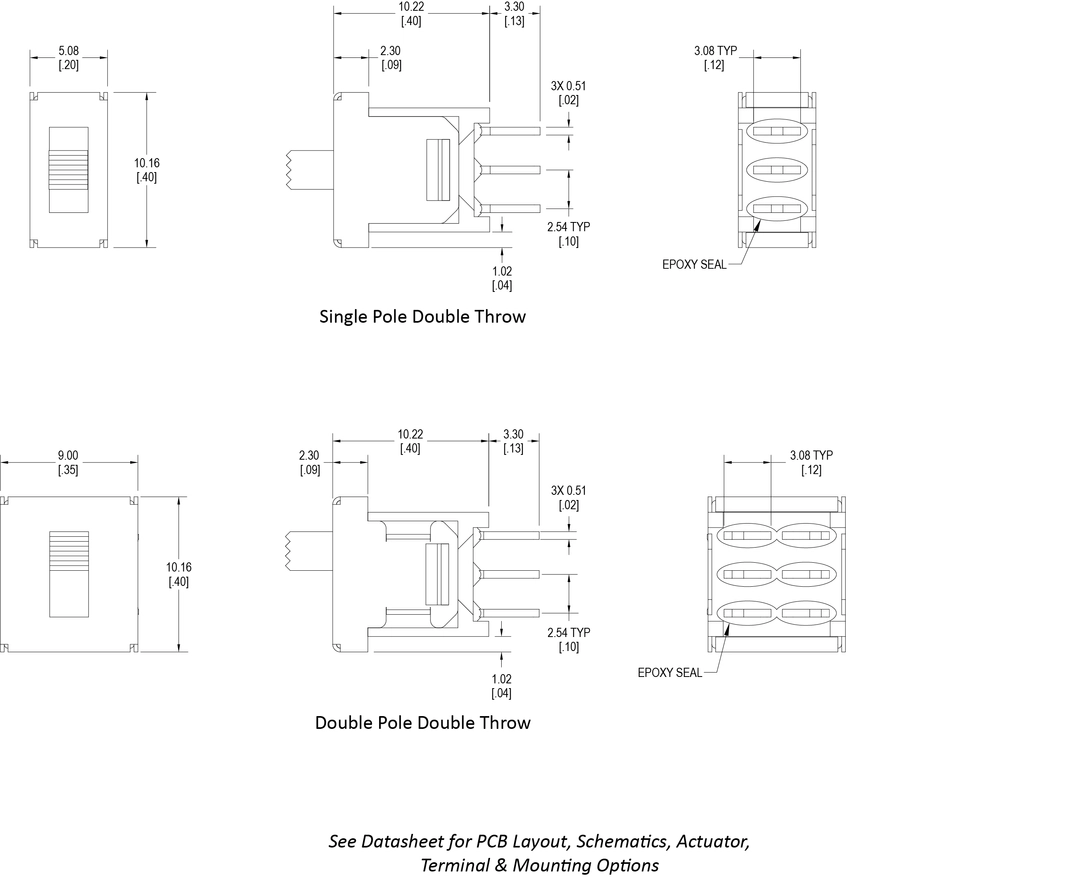

Dimensional Drawing
