1000 Series

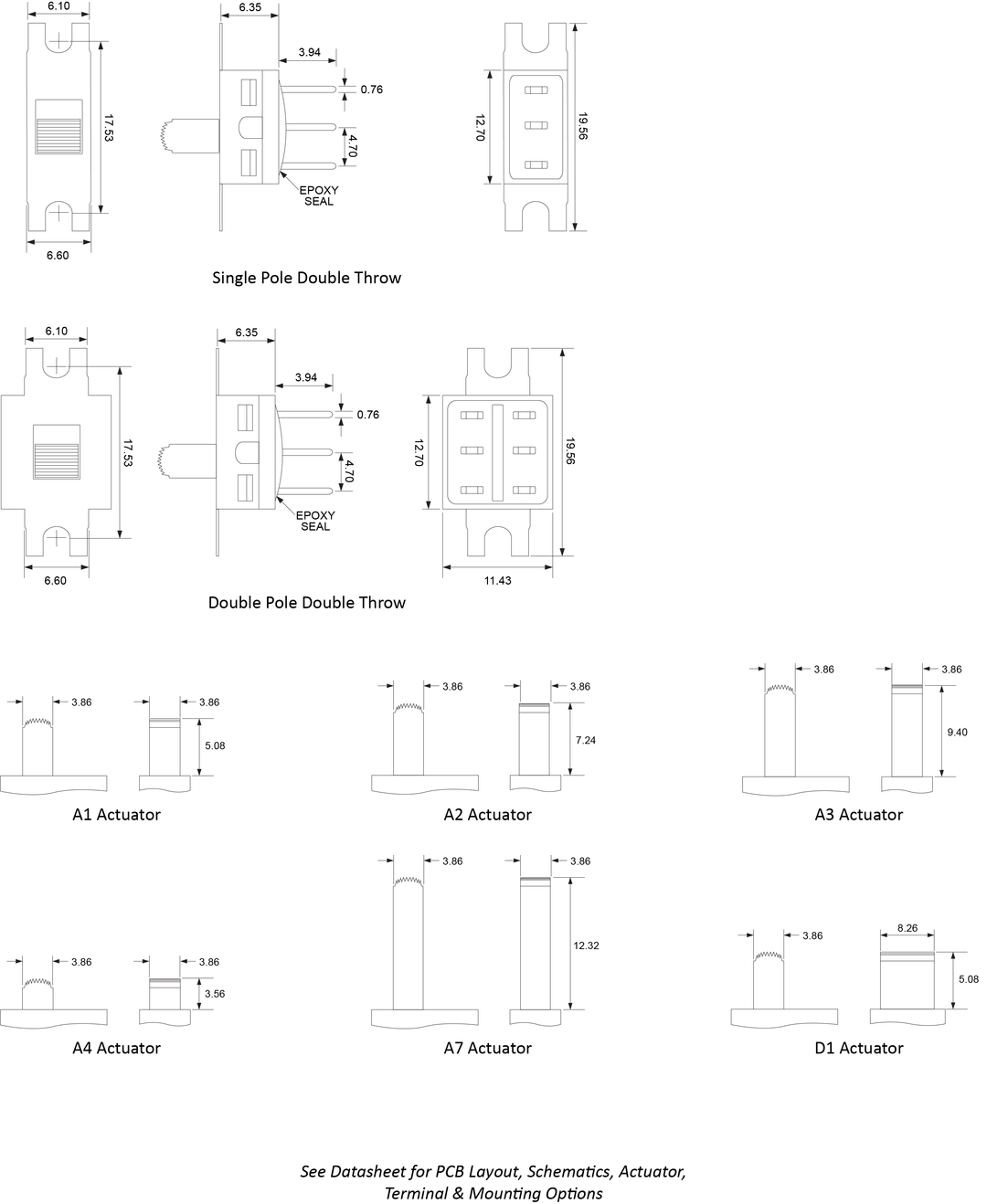

The 1000 Series is a UL Approved through-hole, miniature slide switch with a choice of SPDT or DPDT poles. This panel mount switch offers function options including On-None-On, On-None-(On) and On-Off-On. Actuator lengths range from 3.6mm up to 9.4mm with termination options of solder lug, standard PC pin, quick connect, horizontal mount right angle PC pin, vertical mount right angle PC pin, or PC pin with support bracket. The 1000 Series mini slide is offered with or without mounting ears and housing of steel and nylon. Contact us to order your custom right angle switch today.
